Magician (Educational Version)
Lightweight, Intelligent all-in-one robot for STEAM Education
(End Effectors Vacuum Pump Kit, Gripper, Writing/Drawing Kit, 3D printing Kit, Laser Module, Wifi and Bluetooth Module, Joystick Control Kit)
Lightweight, Intelligent all-in-one robot for STEAM Education
(End Effectors Vacuum Pump Kit, Gripper, Writing/Drawing Kit, 3D printing Kit, Laser Module, Wifi and Bluetooth Module, Joystick Control Kit)
Lightweight, Intelligent all-in-one robot for STEAM Education
(End Effectors Vacuum Pump Kit, Gripper, Writing/Drawing Kit, 3D printing Kit, Laser Module, Wifi and Bluetooth Module, Joystick Control Kit)
-
• 4 DoF Classroom Robotic Arm
• Very good for learning robotics
• Suitable for STEAM Education Platform
• 3d printing ready
• Laser engraving ready
DOBOT Magician is a multifunctional desktop robotic arm
DOBOT Magician is a multifunctional desktop robotic arm for practical training education. Installed with different end-tools, DOBOT Magician can realize interesting functions such as 3D printing, laser engraving, writing and drawing. It supports secondary development by 13 extensible interfaces and over 20 programming languages, which really makes your creativity and imagination increase without any limitation. In recognition of its excellent performance in hardware design and software application, DOBOT Magician has received the CES 2018 Innovation Award and iF DESIGN AWARD 2018.
HIGH QUALIFICATION STANDARDS
DOBOT Magician applies to major international standards like CE, RoHS, ERP, FCC, KC, PSE, TELEC, etc.
HANDS-ON EXPERIENCE FOR EVERYONE
DOBOT Magician is low cost, small size, and easy operation, which allows every student to practice on their own. It improves the teaching efficiency dramatically. It can be controlled by Programming, APP, Bluetooth, WiFi, Mouse, and more.
SECONDARY DEVELOPMENT

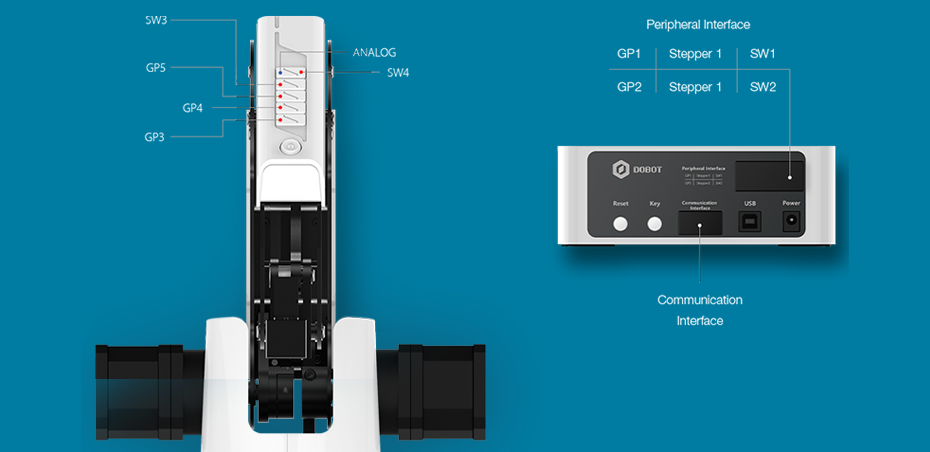

DOBOT Magician is compatible to develop user applications with its 13 I/O ports, API, released protocols. It can be developed with several programming languages, ROS, PLC, Microcontroller and Arduino.
MULTI-ROBOT COLLABORATION

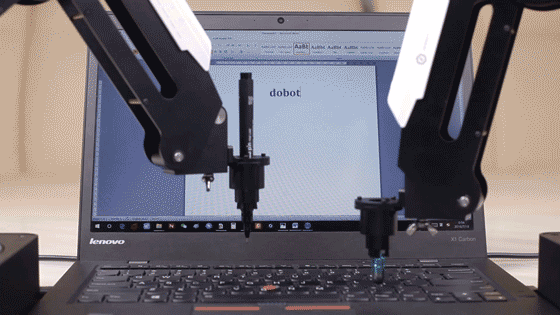

You can control several DOBOT Magician by the same device only, which allows Multi-Robot Collaboration.
FREE COMBINATION & TRAINING CURRICULUM
DOBOT Magician is compatible with multiple accessories such as linear rail kit, conveyor belt kit, visual kit, and crawler robot to apply different training projects. What's more, multiple applications and training curriculum are available. An open platform for robot education like Industrial 4.0, Automation, PLC, etc
COST-EFFECTIVE ROBOTIC ARM IN TRAINING EDUCATION
With a fair and reasonable price, DOBOT Magician has 0.2mm repeatability which can simulate almost all real factory robot applications.
Robot Training
University,
technical school
STEM
Secondary School,
Primary School
Workshop
Workshop,
Fab Lab
More
Shake Hands with the Future
Up to now, DOBOT Magician has been successfully applied in many institutions such as Tsinghua University, Shandong University, University of Technology Sydney and more.Enterprises such as Volkswagen, Alibaba, Tencent have established cooperation projects with DOBOT Magician. As the good performance both in hardware design and software application, DOBOT Magician has won the CES 2018 Innovation Award, iF DESIGN AWARD 2018, Red Dot Design Award 2018 and 2017 Red Star Design Award
OPTIONAL ACCESSORIES

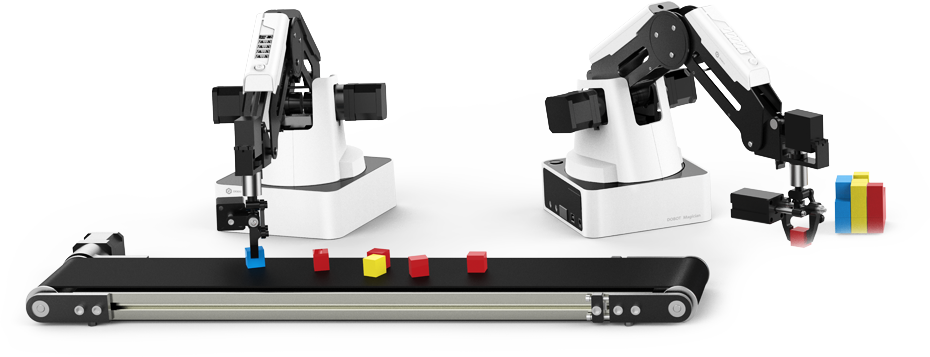

Conveyor Belt Kit
The Conveyor Kit for DOBOT Magician makes it possible to own a complete simulated production line. The powerful and programmable DOBOT Magician, when combined with conveyor belt of adjustable speed, distance and color sensor, is the ideal and perfect tool for you to create a highly effective simulated production line, or even to apply to actual factory application scenarios.
Sliding Rail Kit
A working range of one additional meter unlocks endless possibilities! With the sliding rail kit, the working space of DOBOT Magician can be fully extended to enable it to do large-scale tasks, such as long-distance picking and placing, a larger range of writing, drawing or laser engraving.
Robot Vision Kit
The Robot Vision Kit provides a basic set of hardware platform for robot vision system development. You can set up the vision kit with Dobot Magician and start to learn how to integrate vision system with robot automation system. With the system, you can also do some research on vision, artificial intelligence algorithm-simulation, or develop vision based industrial applications.
SPECIFICATION:
| Dobot Magician | |||
|---|---|---|---|
| Degree of Freedom | 4 | ||
| Payload | 500g (Max) | ||
| Reach | 320mm (Max) | ||
| Repeatability | ±0.2mm | ||
| Axis Motion | Axis 1 - Base | -90° ~ 90° | |
| Axis 2 - Rear Arm | -0° ~ 85° | ||
| Axis 3 - Forearm | -10° ~ 95° | ||
| Axis 4 - End Tools | -90° ~ 90° | ||
| Voltage | 100 ~ 240V AC, 50/60 Hz | ||
| Power Input | 12V 6.5A DC | ||
| Power | 60W (Max) | ||
| Communication Interface | USB | ||
| WIFI | |||
| Bluetooth | |||
| Extensible I/O Interfaces | 1x | Communication Interface UART, Reset, Stop, 12V, 5V, 2x I/O |
|
| 10x | I/O Configurable as Analog Input or PWM Output |
||
| 4x | Controllable 12V Power output | ||
| 2x | Stepper | ||
| Weight | 3.4kg | ||
| Base Size | 158mm x 158mm | ||
| Working Environment | -10° ~ 60° | ||
| Software | DubotStudio, Repetier Host, GrblController3.6, DobotBlockly (Visual Programing editor) |
||
| SDK (Software Develop Kit) | Communication Protocol, Dobot Program Library |
||
| End Effectors | |||
| 3D Printer Kit | Maximum Print Size (L x W x H) |
150mm x 150mm x 150mm | |
| 3D printing material | PLA | ||
| Resolution | 0.1mm | ||
| Laser Engraving | Power | 12V , TTL trigger (With PWM Driver) | |
| Power Consumption | 500mw | ||
| Type | 405nm (Blue laser) | ||
| Pen Holder | Pen Diameter | 10mm | |
| Vacuum Suction Cup | Suction Cup Diameter |
20mm | |
| Pressure | -35 Kpa | ||
| Gripper | Drive Type | Pneumatic | |
| Stroke Range | 27.5mm | ||
| Force | 8N | ||
