Magician Lite
Outsmart the robots in the future. The Perfect K12 Platform for Students, Teachers and Educators.
Outsmart the robots in the future. The Perfect K12 Platform for Students, Teachers and Educators.
Outsmart the robots in the future. The Perfect K12 Platform for Students, Teachers and Educators.
-
• Lightweight 4 DoF Robot Arm
• Suitable for K12 Students
• With Suction Cup, Pen Holder & Flexible Gripper
DOBOT Magician Lite, a multi-functional lightweight intelligent robotic arm, is one of the core products in DOBOT’s K12 customized artificial intelligence education ecosystem.
Magician Lite enjoys numerous software and hardware interaction methods and expansion interfaces in order to maximize students’ freedom to create. Through building and playing, students can learn how artificial intelligence and mechanic’s work. They will be also introduced to a world of rudimentary knowledge of robotics and how they can be used in real world. Additionally, the DOBOT hosts robotics competitions to stoke students’ interest in robotics and get more of them to be involved.
At the competition, students work together as a team to address challenging tasks by designing, creating and programming their own robots. This means that these students not only can put what they have learned to rigid test, but also get to celebrate their unique talents and achievements.
DOBOT robotics competitions strive to provide fertile ground for budding problem-solvers to grow and prosper.
Plug & Play End Tools
Quick change for end of tooling.
Suction Cup
Built-in air pump drive works under negative pressure, with suction cup diameter of 20mm.
Pen Holder
Flexible pen point for smooth writing.
Pen Diameter: 8-12 mm

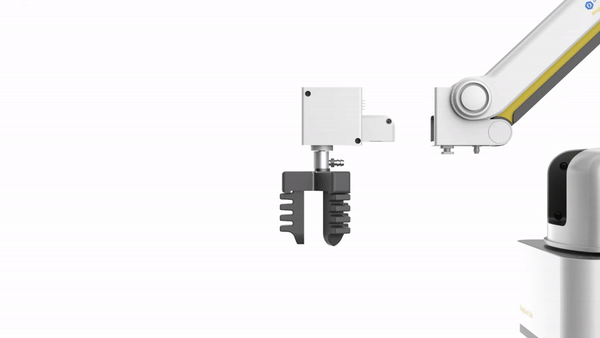

Flexible Gripper
Built-in air pump drive works under positive and negative pressure, with maximum opening and closing distance of 50mm
Excellent Performance & Safe to Use
Magician Lite is compact and only weighs 2.4kg, making it portable and easy to build an application scenario. Its repeatability positioning is 0.2mm, payload 0.25kg, and radius range 340mm. It supports a soft gripper, suction cup, pen grasper and other changeable end tools. The robot has collision detection function, making it safe for children to be around.
Portable with Capability
340mm reach range — fit for school desk.
2.4kg body weight — compact and lightweight.
0.25kg payload — easily meet teaching needs.
Built-in Air Pump
Tidier classroom.
No tangled cables.
No extra pump boxes.
Camera & Microphone
AI smart camera.
No distortion.
Flexible angling.

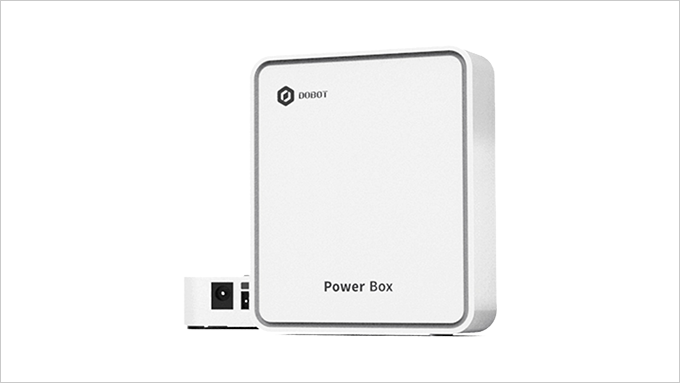

External Power
60 minutes battery life.
Easy to deploy.
Break venue restrictions.

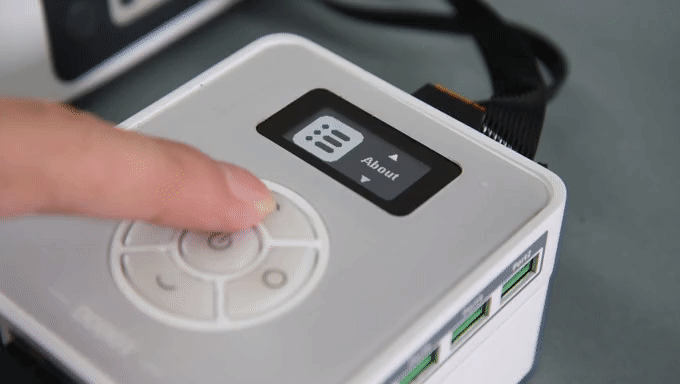

Magic Box
The external controller separates motion control algorithm and user tasks to allow more convenience for programming and creating.
Stand-alone Mode
Online Mode
SPECIAL FUNCTIONS
Collision Detection
Strengthened Safety, making it safe for children to be around.
Handheld Teach & Play
Easy to get started, intuitive and interactive
ONE-STOP LEARNING PLATFORM

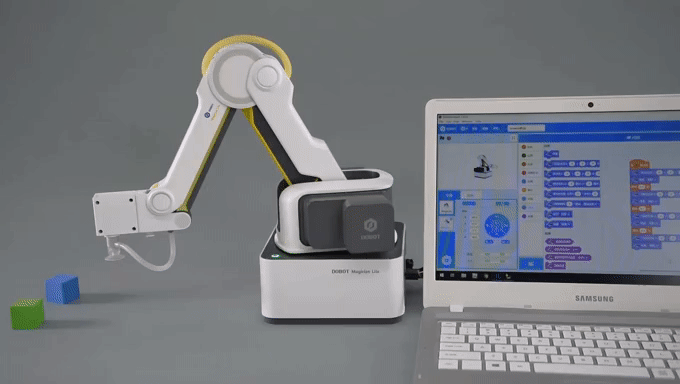

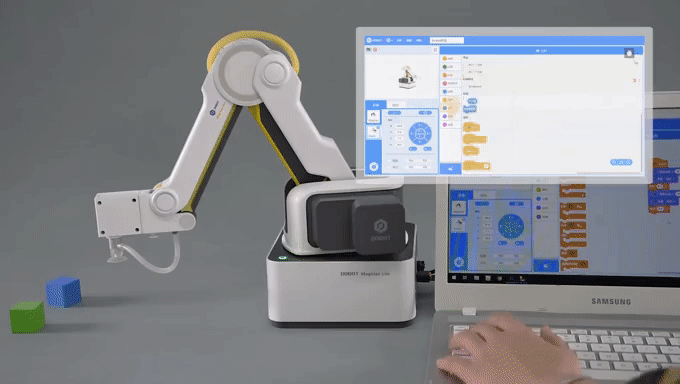

DobotScratch
AI-powered Graphical Programming Platform, AI functions including:
Voice Recognition
Image Recognition
Facial Recognition
OCR Text Recognition
MicroPython
DobotScratch supports Scratch transfer to Python
COMPETITION PACKAGE (Optional)
Intelligent Logistics
Magic Box, Mobile Platform, Smart Car and more.
Environmental Protection Contest
Magic Box, Joystick and more.
Specification:
| Dobot Magician Lite | |||
|---|---|---|---|
| Degree of Freedom | 4 | ||
| Payload | 250g (Max) | ||
| Reach | 340mm (Max) | ||
| Repeatability | ±0.2mm | ||
| Axis Motion | Axis 1 - Base | -135° ~ 135° | |
| Axis 2 - Rear Arm | -5° ~ 80° | ||
| Axis 3 - Forearm | -10° ~ 85° | ||
| Axis 4 - End Tools | -135° ~ 135° | ||
| Voltage | 100 ~ 240V AC, 50/60 Hz | ||
| Power Input | 12V 5A DC | ||
| Power | 60W (Max) | ||
| Communication Interface | USB Virtual Serial Port | ||
| Serial Port | |||
| Weight | 2.4kg | ||
| Rear Arm / Forearm Size | 150mm | ||
| Base Size | 146mm x 146mm | ||
| Working Environment | -5° ~ 45° | ||
| Software | DobotStudio, DubotScratch | ||
| Magic Box | |||
| MCU | ARM 32-bit Cortex-M4 | ||
| Main Frequency | 168 Mhz | ||
| Voltage | 100 ~ 240V AC, 50/60 Hz | ||
| Power Input | 12V 5A DC | ||
| Power | 60W (Max) | ||
| Communication | USB Virtual Serial Port | ||
| Serial Port | |||
| Bluetooth | |||
| Weight | 98g | ||
| Size | 95mm x 80mm x 21.5mm | ||
| Working Environment | -5° ~ 45° | ||
| Programming Language | MicroPython | ||
| Software | DubotStudio, DubotScratch | ||
| Expansion Interface | |||
| Power Interface | 2x | 4 Pins 12V 3A DC |
|
| Multi-Functional Communication Interface |
2x | 10 Pins Serial Communication Interface |
|
| I/O Interface | 6x | Green Port 4 Pins 3.3V/5V-IO, 5V 1A-VCC, Multi-functional Interface, User-defined I/O, AD, PWM Output, 12C, etc. |
|
| Stepper Motor Inteface | 2x | Yellow Port 4 Pins 2-Phase Stepper Motor, 16 Subdivision, 12V 1A |
|
| 12V Power Interface | 2x | Red Terminal 2 Pins 12V 3A Max |
|
| End Effectors | |||
| Pen Holder | Pen diameter: 8 ~ 12mm | ||
| Suction Cup | Build-in air pump drive works under negative pressure, with suction cup diameter of 20mm | ||
| Soft Gripper | Build-in air pump drive works under negative and positive pressure, with maximum opening and closing distance of 50mm | ||
