CR Series
The DOBOT CR Series consists of 6 payloads: 3 kg, 5 kg, 7 kg, 10 kg, 12 kg, and 16kg, with repeatability of ±0.02 mm. They are safe for human collaboration, easy to use, flexible and simple to deploy, making them ideal for a wide range of industries: automotive, consumer electronics, semiconductor, healthcare, chemical and new retail. The CR Series lowers labor cost while enhancing production efficiency.
The DOBOT CR Series consists of 6 payloads: 3 kg, 5 kg, 7 kg, 10 kg, 12 kg, and 16kg, with repeatability of ±0.02 mm. They are safe for human collaboration, easy to use, flexible and simple to deploy, making them ideal for a wide range of industries: automotive, consumer electronics, semiconductor, healthcare, chemical and new retail. The CR Series lowers labor cost while enhancing production efficiency.
The DOBOT CR Series consists of 6 payloads: 3 kg, 5 kg, 7 kg, 10 kg, 12 kg, and 16kg, with repeatability of ±0.02 mm. They are safe for human collaboration, easy to use, flexible and simple to deploy, making them ideal for a wide range of industries: automotive, consumer electronics, semiconductor, healthcare, chemical and new retail. The CR Series lowers labor cost while enhancing production efficiency.
-
• Industrial Grade 6 DoF Robot Arm
• 6.6 lbs to 35 lbs of Maximum Payload
• 2.6’ to 5’ Maximum Arm Reach
• ± .0008” / ± .0012” of Repeatability

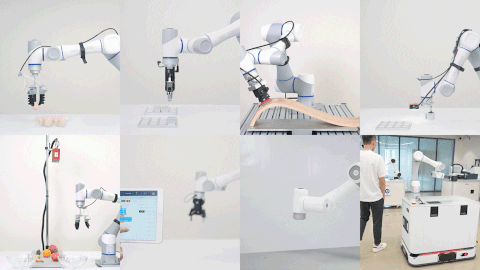

Empowered by a wide range of payloads from 6.6 to 35 lbs, our cobots apply to multiple industries.
They operate in a 6-axis mode, enabling a high level of their flexibility with repeatability of up to ± .0008”. DOBOT CR series robotic arms are safe and easy to learn and use. With these features, DOBOT CR series cobots meet rich customer needs for flexible automation that significantly reduces business costs and improves production efficiency.
Applications:
Specification:

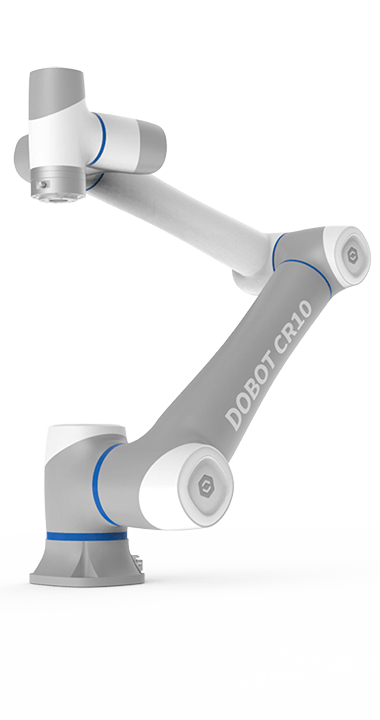

CR3 | CR5 | CR10 | CR16 | ||
---|---|---|---|---|---|
Maximum Payload | 6.6 lbs. (3 kg) | 11 lbs. (5 kg) | 22 lbs. (10 kg) | 35 lbs. (16 kg) | |
Working Radius | 2' (620 mm) | 2' 11" (900 mm) | 4' 3" (1300 mm) | 3' 3" (1000 mm) | |
Max. Reach (Radius) | 2' 7" (795 mm) | 3' 7" (1096 mm) | 5' (1525 mm) | 4' (1223 mm) | |
Repeatability | ± .0008" (± 0.02 mm) | ± .0012" (± 0.03 mm) | |||
Max. Speed of TCP | 2 m/s | 3 m/s | 4 m/s | 3 m/s | |
Max. Speed of TCP | 36 lbs. (16.5 kg) | 55 lbs. (25 kg) | 88 lbs. (40 kg) | ||
Rated Voltage | DC48V | ||||
Joint Ranges | J1 | ± 360° | |||
J2 | ± 360° | ||||
J3 | ±155° | ±160° | |||
J4 | ± 360° | ||||
J5 | ± 360° | ||||
J6 | ± 360° | ||||
Max. Speed of Joints |
J1 / J2 | 180°/s | 120°/s | ||
J3 / J4 / J5 / J6 | 180°/s | ||||
End-Effector I/O Interface |
DI / DO / AI | 2 | |||
AO | 0 | ||||
Communication Interface | RS485 | ||||
Controller I/O | DI | 16 | |||
DO / DI | 16 | ||||
AI / AO | 2 | ||||
ABZ Incremental Encoder |
1 | ||||
Communication | TCP/IP, Modbus, Wi-Fi | ||||
IP Rating | IP54 | ||||
Working Temperature | 0℃~ 45℃ | ||||
Power | 120W | 150W | 350W | ||
Materials | Aluminum Alloy, ABS plastic |
