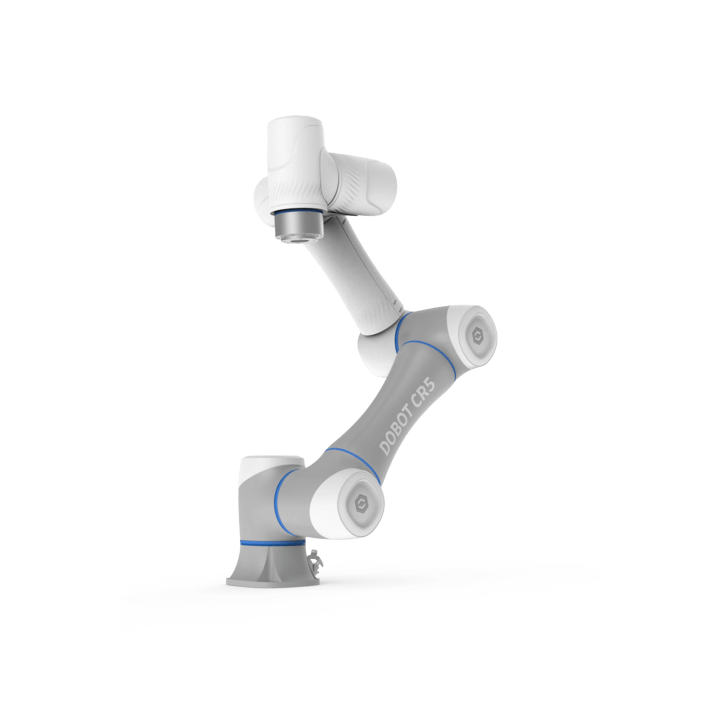

CRS Series - Cobot with SafeSkin

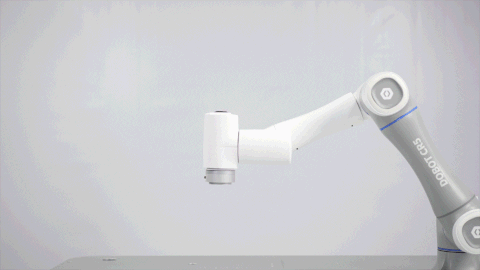

The DOBOT CRS Series consists of 3 payloads: 3 kg, 5 kg, and 10 kg with repeatability of ±0.02 mm and 5 levels of adjustable collision detection settings. The intelligent interaction panel offers quick access to drag-to-teach functionality. Equipped with SafeSkin for pre-collision detection, CR5S allows for efficient human-machine collaboration.
The DOBOT CRS Series consists of 3 payloads: 3 kg, 5 kg, and 10 kg with repeatability of ±0.02 mm and 5 levels of adjustable collision detection settings. The intelligent interaction panel offers quick access to drag-to-teach functionality. Equipped with SafeSkin for pre-collision detection, CR5S allows for efficient human-machine collaboration.
The DOBOT CRS Series consists of 3 payloads: 3 kg, 5 kg, and 10 kg with repeatability of ±0.02 mm and 5 levels of adjustable collision detection settings. The intelligent interaction panel offers quick access to drag-to-teach functionality. Equipped with SafeSkin for pre-collision detection, CR5S allows for efficient human-machine collaboration.
-
• Industrial Grade 6 DoF Robot Arm

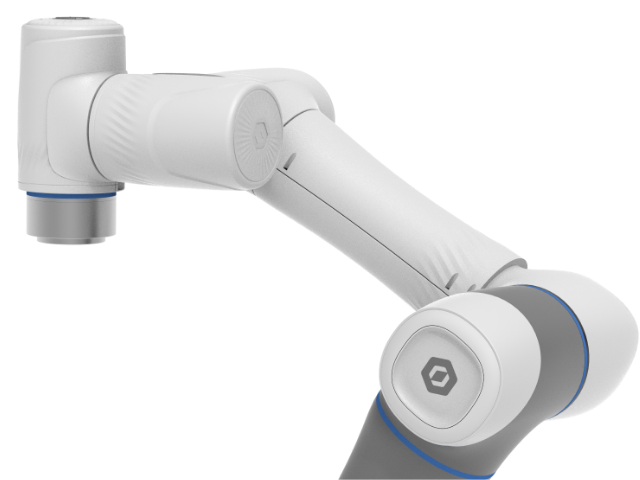

• Soft Silicone SafeSkin Added
• Non-contact Detection.• 6.6 lbs to 35 lbs of Maximum Payload
• 2.6’ to 5’ Maximum Arm Reach
• ± .0008” / ± .0012” of Repeatability
Applications:
Specification:
CR3 | CR5 | CR10 | ||
---|---|---|---|---|
Maximum Payload | 6.6 lbs. (3 kg) | 11 lbs. (5 kg) | 22 lbs. (10 kg) | |
Working Radius | 2' (620 mm) | 2' 11" (900 mm) | 4' 3" (1300 mm) | |
Max. Reach (Radius) | 2' 7" (795 mm) | 3' 7" (1096 mm) | 5' (1525 mm) | |
Repeatability | ± .0008" (± 0.02 mm) | ± .0012" (± 0.03 mm) | ||
Max. Speed of TCP | 2 m/s | 3 m/s | 4 m/s | |
Weight | 36 lbs. (16.5 kg) | 55 lbs. (25 kg) | 88 lbs. (40 kg) | |
Rated Voltage | DC48V | |||
Joint Ranges | J1 | ± 360° | ||
J2 | ± 360° | |||
J3 | ±155° | ±160° | ||
J4 | ± 360° | |||
J5 | ± 360° | |||
J6 | ± 360° | |||
Max. Speed of Joints |
J1 / J2 | 180°/s | 120°/s | |
J3 / J4 / J5 / J6 | 180°/s | |||
End-Effector I/O Interface |
DI / DO / AI | 2 | ||
AO | 0 | |||
Communication Interface | RS485 | |||
Controller I/O | DI | 16 | ||
DO / DI | 16 | |||
AI / AO | 2 | |||
ABZ Incremental Encoder |
1 | |||
Communication | TCP/IP, Modbus, Wi-Fi | |||
IP Rating | IP54 | |||
Working Temperature | 0℃~ 45℃ | |||
Power | 120W | 150W | 350W | |
Materials | Aluminum Alloy, ABS plastic |
