Slim-type Parallel Gripper

$685.00

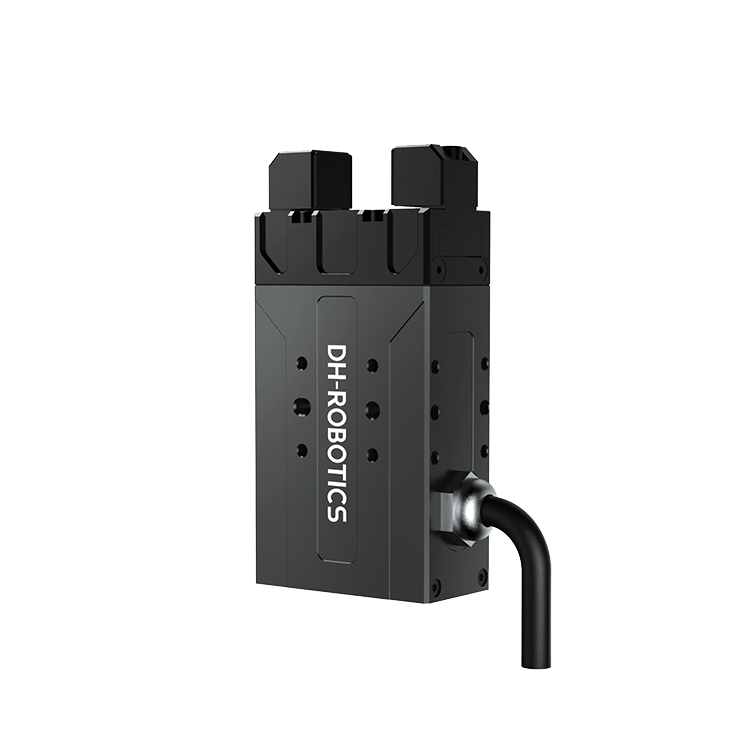

Industrial Slim-type Electric Parallel Gripper by DH-Robotics

Stroke / Gripping Force (Per Jaw):
Quantity:
Add To Cart

Industrial Slim-type Electric Parallel Gripper by DH-Robotics

Industrial Slim-type Electric Parallel Gripper by DH-Robotics

  • • Industrial Grade

    • Force Control

    • Compact Size

    • High-speed

    • IP40 Rating

PGE Series

The PGE series is an industrial slim-type electric parallel gripper. With its precise force control, compact size and highly working speed, it has become a “Hot sell product” in the field of industrial electric gripper.


PRODUCT FEATURES

Small size | Flexible installation

The thinnest size is 18 mm with compact structure, supports at least five flexible installation methods to meet the needs of clamping tasks & saves design space.

High Working Speed

The fastest opening and closing time can reach 0.2 s / 0.2 s, which can meet the high-speed and stable clamping requirements of the production line.

Precise Force Control

With special driver design and driving algorithm compensation, the gripping force is continuously adjustable, and the force repeatability could reach 0.1N


More Features

  • Integrated Design

  • Adjustable Parameters

  • Smart Feedback

  • Fingertips can be replaced

  • -30℃ low temperature operation

  • IP40 Rating

  • CE certification

  • FCC certification

  • RoHs certification


Specification:

PGE-2-12 PGE-5-26 PGE-8-14 PGE-15-10 PGE-15-26 PGE-50-26
Image Image Image Image Image Image
Gripping force
(per jaw)
0.8~2 N 0.8~5 N 2~8 N 6~15 N 6~15 N 15~50 N
Stroke 12 mm 26 mm 14 mm 10 mm 26 mm 26 mm
Recommended workpiece weight 0.05 kg 0.1 kg 0.1 kg 0.25 kg 0.25 kg 1 kg
Opening/Closing time 0.2 s/0.2 s 0.2 s/0.2 s 0.2 s/0.2 s 0.25 s/0.25 s 0.4 s/0.4 s 0.3 s/0.3 s
Repeat accuracy (position) ± 0.02 mm ± 0.02 mm ± 0.02 mm ± 0.01 mm ± 0.02 mm ± 0.02 mm
Noise emission < 40 dB < 40 dB < 40 dB < 60 dB < 40 dB < 40 dB
Weight 0.15 kg 0.4 kg 0.4 kg 0.155 kg 0.33 kg 0.4 kg
Driving method Rack and pinion +
Cross roller guide
Rack and pinion +
Cross roller guide
Rack and pinion +
Linear guide
Precision planetary reducer + Rack and pinion Precision planetary reducer + Rack and pinion Precision planetary reducer + Rack and pinion
Size 65 mm x 39 mm x 18mm 95 mm x 55 mm x 26 mm 97 mm x 62 mm x 31 mm 89 mm x 30 mm x 18 mm 86.5 mm x 55 mm x 26 mm 97 mm x 55 mm x 29 mm
Communication
interface
Standard: Modbus RTU (RS485), Digital I/O
Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
Rated voltage 24 V DC ± 10% 24 V DC ± 10% 24 V DC ± 10% 24 V DC ± 10% 24 V DC ± 10% 24 V DC ± 10%
Rated current 0.2 A 0.4 A 0.4 A 0.1 A 0.25 A 0.25 A
Peak current 0.5 A 0.7 A 0.7 A 0.22 A 0.5 A 0.5 A
IP class IP 40 IP 40 IP 40 IP 40 IP 40 IP 40
Recommended environment 0~40°C, under 85% RH
Certification CE,FCC,RoHS
